Tutorial 1 Run HRCHY-CytoCommunity on 18_Cell_TNBC_MIBI-TOF
Creator: Runzhi xie (rzxie@stu.xidian.edu.cn).
Affiliation: xidian University, Gao Lab
Date of Creation: 10.10.2025
Date of Last Modification: 10.10.2025
import warnings
warnings.filterwarnings("ignore")
import scanpy as sc
import numpy as np
import pandas as pd
import os
from sklearn.neighbors import kneighbors_graph
import datetime
from typing import Optional
from hrchy_cytocommunity.models.dataset import SpatialOmicsImageDataset
from hrchy_cytocommunity.models import HRCHYCytoCommunity, HRCHYCytoCommunityGrand
from hrchy_cytocommunity.visualization.visualization import load_base_data, vis_heatmap
from hrchy_cytocommunity.models.auto_k import HRCHYClusterAutoK, _dd_list,_dd_float
prepare input data
construct k-nn graph
def compute_knn(coords, K, sample_id, save_folder: Optional[str] = None):
"""
construct KNN graph and save it into file
参数:
coords: (n, 2) ndarray, the coordinates of cells
K: the number of nearest neighbors
sample_id: sample id
save_folder: the path of HRCHY-CytoCommunity input data
"""
print(datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S'))
print(f'Constructing KNN graph for {len(coords)} points...')
A = kneighbors_graph(coords, K, mode='connectivity', include_self=False, n_jobs=-1) # CSR
A = A.maximum(A.T).tocsr()
A.eliminate_zeros()
A.sort_indices()
src, dst = A.nonzero()
edge_index = np.vstack((src, dst)).astype(np.int64)
edge_index = edge_index.T # or int32
if save_folder is not None:
filename = os.path.join(save_folder, f"{sample_id}_EdgeIndex.txt")
np.savetxt(filename, edge_index, delimiter='\t', fmt='%d')
print(f"Saved {len(edge_index)} edges to {filename}")
print(datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S'))
return edge_index
K = 50 # number of nearest neighbors
input_dir0 = './example_data/MIBI-TOF/raw'
sample_list = ['patient4']
setting = f'KNN_{K}'
for i,sample_id in enumerate(sample_list):
coords = np.loadtxt(f"{input_dir0}/{sample_id}_Coordinates.txt")
print(f"{sample_id} is processing!")
compute_knn(coords,K=K,sample_id=sample_id,save_folder=input_dir0)
#print(len(set(adata.obs['region'])))
patient4 is processing!
2025-10-10 23:08:29
Constructing KNN graph for 6667 points...
Saved 357786 edges to ./example_data/MIBI-TOF/raw/patient4_EdgeIndex.txt
2025-10-10 23:08:30
run HRCHY-CytoCommunity pipeline
finish training within 2mins (RTX4090)
data_input_dir = './example_data/MIBI-TOF'
save_dir = './results/MIBI-TOF/'
dataset = SpatialOmicsImageDataset(data_input_dir)
graph_dict = {
'patient4':0,
}
model_params = {
'mode' : 'full', # full HRCHYCytoCommunity model
's' : 5, # number of perturbations
'num_tcn1' : 14, # number of fine-grained TC
'num_tcn2' : 2, # number of coarse-grained TC
'num_epoch' : 1500,
'lambda1':1, # Coefficient of consistency regularization
'lambda_balance':1, # Coefficient of cluster balance regularization
'num_hidden' : 128, # the dimension of hidden layer
'lr' : 1e-4, # learning rate
'drop_rate' : 0.5, # rate of drop node
'gt_fine':False, # whether input data contain fine-grained CN ground truth
'gt_coarse':False, # whether input data contain coarse-grained TC ground truth
'device':'cuda:0' # training device, if no gpu, set 'cpu'
}
HyperPara_df = pd.DataFrame(model_params.items(), columns=['Parameter', 'Value'])
if not os.path.exists(os.path.join(save_dir)):
os.makedirs(os.path.join(save_dir))
HyperPara_df.to_csv(os.path.join(save_dir,'HyperPara.csv'))
for slice_name,graph_idx in graph_dict.items():
print(f"{slice_name} is processing")
train_dataset = dataset[graph_idx]
cell_meta = load_base_data(os.path.join(data_input_dir,'raw'),
graph_idx,fine_GT=model_params['gt_fine'],
coarse_GT=model_params['gt_coarse'])
cell_meta = cell_meta
print(datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S'))
if model_params['mode'] == 'base':
hrchycytocommunity = HRCHYCytoCommunity(
dataset = train_dataset,
num_tcn1 = model_params['num_tcn1'],
num_tcn2 = model_params['num_tcn2'],
cell_meta = cell_meta,
lr = model_params['lr'],
num_epoch = model_params['num_epoch'],
lambda1 = model_params['lambda1'],
lambda_balance = model_params['lambda_balance'],
device = model_params['device'],
gt_coarse=model_params['gt_coarse'],
gt_fine=model_params['gt_fine'],
)
elif model_params['mode'] == 'full':
hrchycytocommunity = HRCHYCytoCommunityGrand(
dataset = train_dataset,
num_tcn1 = model_params['num_tcn1'],
num_tcn2 = model_params['num_tcn2'],
cell_meta = cell_meta,
lr = model_params['lr'],
num_epoch = model_params['num_epoch'],
lambda1 = model_params['lambda1'],
lambda_balance = model_params['lambda_balance'],
s = model_params['s'],
drop_rate = model_params['drop_rate'],
device = model_params['device'],
gt_coarse=model_params['gt_coarse'],
gt_fine=model_params['gt_fine'],
)
ret_output_dir = os.path.join(save_dir,slice_name)
hrchycytocommunity.train(save_dir=ret_output_dir, # path to save output results
output=False, # whether print out training information during training
vis_while_training=True # whether visualize clustering results during training
)
hrchycytocommunity.predict(save = True,save_dir=ret_output_dir)
print(datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S'))
patient4 is processing
2025-10-10 23:09:33
edge_pruning_cutoff = 0.07692307692307693
0%| | 0/1500 [00:00<?, ?it/s]
100%|██████████| 1500/1500 [00:43<00:00, 34.47it/s]
2025-10-10 23:10:16
visualize result
x_label = 'x_coordinate'
y_label = 'y_coordinate'
dict_color_ct = {"CD4+ T": "#fee08b",
"B cells": "Red",
"Dendritic cells": "Black",
"CD8+ T": "MediumBlue",
"CD3+ T": "Purple",
"Macrophages": "#00A087",
"Dendritic cells and monocytes mixed subpopulation": "#1F77B4",
"NK cells": "#a50026",
"Regulatory T": "#FF7F0E",
"Other immune cells": "#9467BD",
"Monocytes and neutrophils mixed subpopulation": "#2CA02C",
"Neutrophil": "#8C564B",
"Neoplastic cells": "#E377C2",
"Mesenchymal stromal cells": "#7F7F7F",
"Keratin+ neoplastic cells": "#543005",
"Unknown subpopulation": "#BCBD22",
"Endothelial cells": "#17BECF"}
dict_color_TC = {
0:"#7fc97f",
1:"#beaed4"
}
dict_color_TCN = {0: "#5a3b1c", 1: "#939396", 2: "#2c663b", 3: "#d63189", 4: "#54a9dd",
5: "#813188", 6: "Orange", 7: "#231f1f", 8: "#912b61", 9: "#dc143c",
10: "#ba55d3", 11: "#7b68ee", 12: "#00008b", 13: "#cd853f",
#"15": "#5f9eA0"
}
load hierarchical tissue structure assignment
cell_meta = load_base_data(os.path.join(data_input_dir,'raw'),
graph_idx,fine_GT=model_params['gt_fine'],
coarse_GT=model_params['gt_coarse'])
fine_cluster_id = pd.read_csv(f"{save_dir}/{slice_name}/fine_ClusterAssignMatrix_hard.csv",header=None)[0].tolist()
coarse_cluster_id = pd.read_csv(f"{save_dir}/{slice_name}/coarse_ClusterAssignMatrix_hard.csv",header=None)[0]
coarse_cluster_id = coarse_cluster_id[fine_cluster_id].tolist()
cell_meta['coarse_cluster'] = coarse_cluster_id
cell_meta['fine_cluster'] = fine_cluster_id
import seaborn as sns
import matplotlib.pyplot as plt
df = cell_meta[[x_label,y_label]].copy()
df['coarse_cluster'] = cell_meta['coarse_cluster'].to_list()
df['fine_cluster'] = cell_meta['fine_cluster'].to_list()

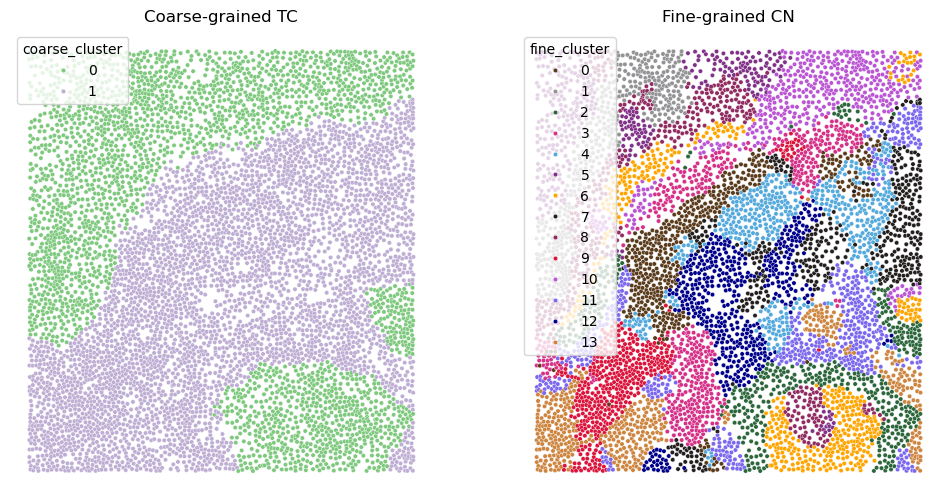

fig, axes = plt.subplots(1, 2, figsize=(12, 6))
# left：coarse cluster
sns.scatterplot(
x=x_label, y=y_label,
data=df,
hue='coarse_cluster',
legend=True,
s=10,
palette=dict_color_TC,
alpha=1.0,
ax=axes[0]
)
axes[0].set_title("Coarse-grained TC")
axes[0].set_xticks([])
axes[0].set_yticks([])
axes[0].set_xlabel(None)
axes[0].set_ylabel(None)
axes[0].invert_yaxis()
sns.despine(ax=axes[0], left=True, bottom=True)
# right：fine cluster
sns.scatterplot(
x=x_label, y=y_label,
data=df,
hue='fine_cluster',
legend=True,
s=10,
palette=dict_color_TCN,
alpha=1.0,
ax=axes[1]
)
axes[1].set_title("Fine-grained CN")
axes[1].set_xticks([])
axes[1].set_yticks([])
axes[1].set_xlabel(None)
axes[1].set_ylabel(None)
axes[1].invert_yaxis() # Invert y-axis to match image coordinate system
sns.despine(ax=axes[1], left=True, bottom=True)
plt.show()
